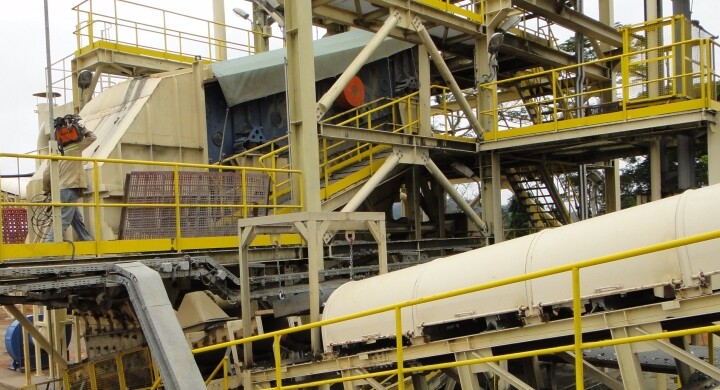

Gold-bearing ore crushing

Main equipment: DCJ 1021 jaw crusher, KDC 35SP cone crusher, KDT 2470/2 vibrating screen

Input material for crushing: gold-bearing ore 0 - 700 mm

Output product of crushing: capacity 200 t/h, P-80, 16 mm

Gold-bearing ore wet grinding

Main equipment: ball mill for wet grinding Ø 3.6 x 5.7 m, rod mill Ø 2.8 x 4.5 m

Input material for grinding: gold-bearing ore fraction 0 - 16 mm

Output product of grinding: capacity 75 t/h, P-80, 75 µm

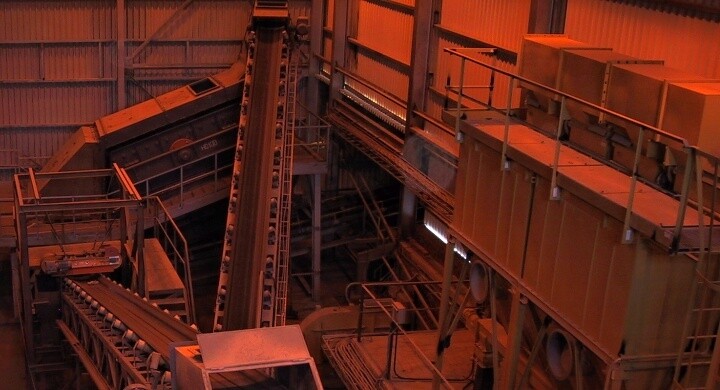

Gold-bearing ore crushing line 150 t/h

Climatic conditions: from -58°C to 34°C

Main equipment: PVR 1200x6000 vibrating grate feeder, DCJ 1100x800 jaw crusher, HZ 2000x4500/2 screen, KDH 900 VH cone crusher, belt conveyors, elevators, dedusting, belt weighers, magnetic separators, steel structures, chutes

Input material: gold-bearing ore fraction 0 - 700 mm

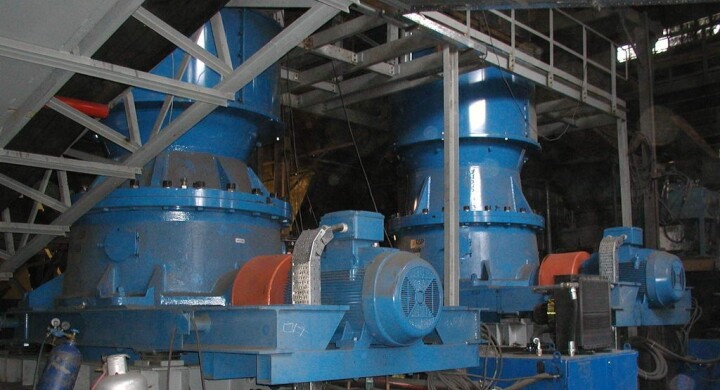

Iron ore crushing plant 500 t/h

Main equipment: KDC 26 HP secondary cone crusher, KDC 36 FP tertiary cone crusher, 2 x KDT 2470/2 two-deck vibrating screen

Input material: iron ore 0 - 200 mm

Output product: fraction 0 - 10 mm

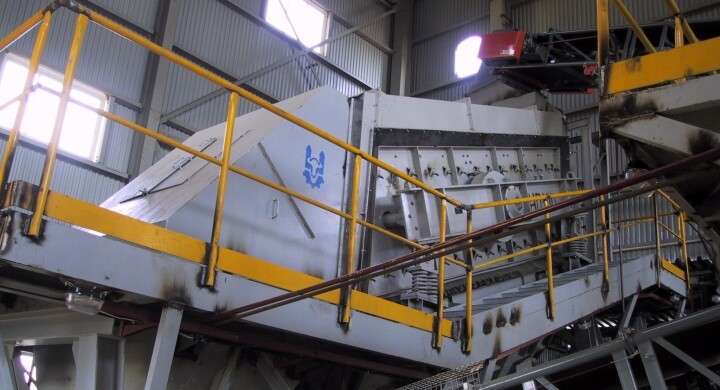

Gold-bearing ore crushing 150 t/h

Climatic conditions: from -38°C to 34°C

Main equipment: PVR 1200x6000 vibrating grate feeder, DCJ 1100x800 jaw crusher, HZ 2000x4500/2 screen, KDH 900 VH cone crusher, steel structure

Input material: gold-bearing ore

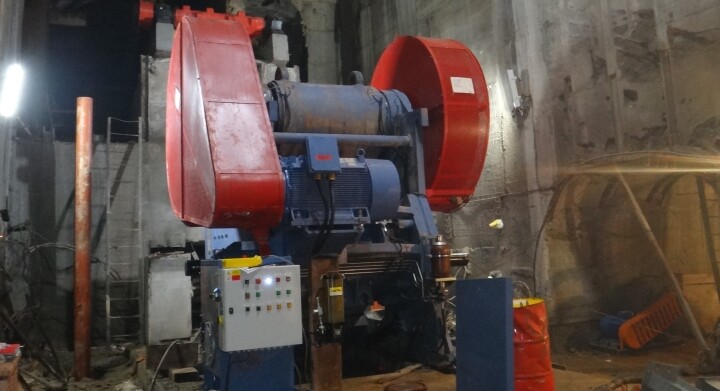

Primary, secondary and tertiary crushing of iron ore

Main equipment: PVR 1200x6000 vibrating grate feeder, 2 x DCJ 1600x1250 jaw crusher, 5 x KDH 1500 cone crusher including hydraulics and control system

Input material: iron ore 0 - 1000 mm

Line capacity: primary crushing 600 t/h, secondary crushing 510 t/h, tertiary crushing 300 t/h

Output product: primary crushing up to 350 mm, secondary crushing up to 21 mm, tertiary crushing up to 9 mm
